Drawbar
| Code | Description | Dimensions A | Dimensions B | Dimensions C | In Stock | ||
|---|---|---|---|---|---|---|---|
| 233-ZN | Drawbar used for 750kg welded frame trailers, length 2.65m and width 1.25m | 2190mm | 950mm | 1020mm | 10+ | |
|
| 231-ZN | Drawbar used for 750kg double axle welded frame trailers, length 3.00m and width 1.25m | 2152mm | 728mm | 1025mm | -- | |
|
| 236-ZN | Drawbar used for 750kg welded frame trailers, length 3.00-3.50m and width 1.50m | 2310mm | 928mm | 1290mm | 10+ | |
|
| 237-ZN | Drawbar used for 750kg welded frame trailers, length 3.50m and width 2.06m | 2242mm | 813mm | 1584mm | -- | |
|
| 9669-ZN | Drawbar, used for 750kg welded frame trailers, length 3.50-4.00m and width 1.86m | 2230mm | 801mm | 1645mm | 10+ | |
|
| 17948-ZN | Drawbar used for 750kg welded frame trailers, length 3.00-4.10m and width 1.50-2.07m | 1980mm | 683mm | 1286mm | 10+ | |
|
| 7245-ZN | Used for 1350-1700kg welded frame trailers, length 3.00-4.90m and width 1.50-2.20m | 1956mm | 679mm | 1290mm | 10+ | |
|
| 7346-ZN | Drawbar used for 1350-1700kg welded frame trailers, length 3.50-4.10m and width 1.86m | 2108mm | 805mm | 1645mm | 10+ | |
|
| 1326 | Crossbeam for 750kg PLH trailer drawbar, length 3.00-3.50m and width 1.50m | 744mm | 45mm | 28mm | 10+ | |
|
| 15200 | Right side drawbar beam. Used for 750kg PLH trailers, length 2.65-3.25m and width 1.25m | 2232mm | 92mm | 34mm | 10+ | |
|
| 15199 | Left side drawbar beam. Used for 750kg PLH trailers, length 2.65-3.25m and width 1.25m | 2232mm | 92mm | 34mm | 10+ | |
|
| 15193 | Right side drawbar beam. Used for 750kg PLH trailers, length 3.00-3.50m and width 1.50m | 2812mm | 92mm | 34mm | 10+ | |
|
| 15192 | Left side drawbar beam. Used for 750kg PLH trailers, length 3.00-3.50m and width 1.50m | 2812mm | 92mm | 34mm | 10+ | |

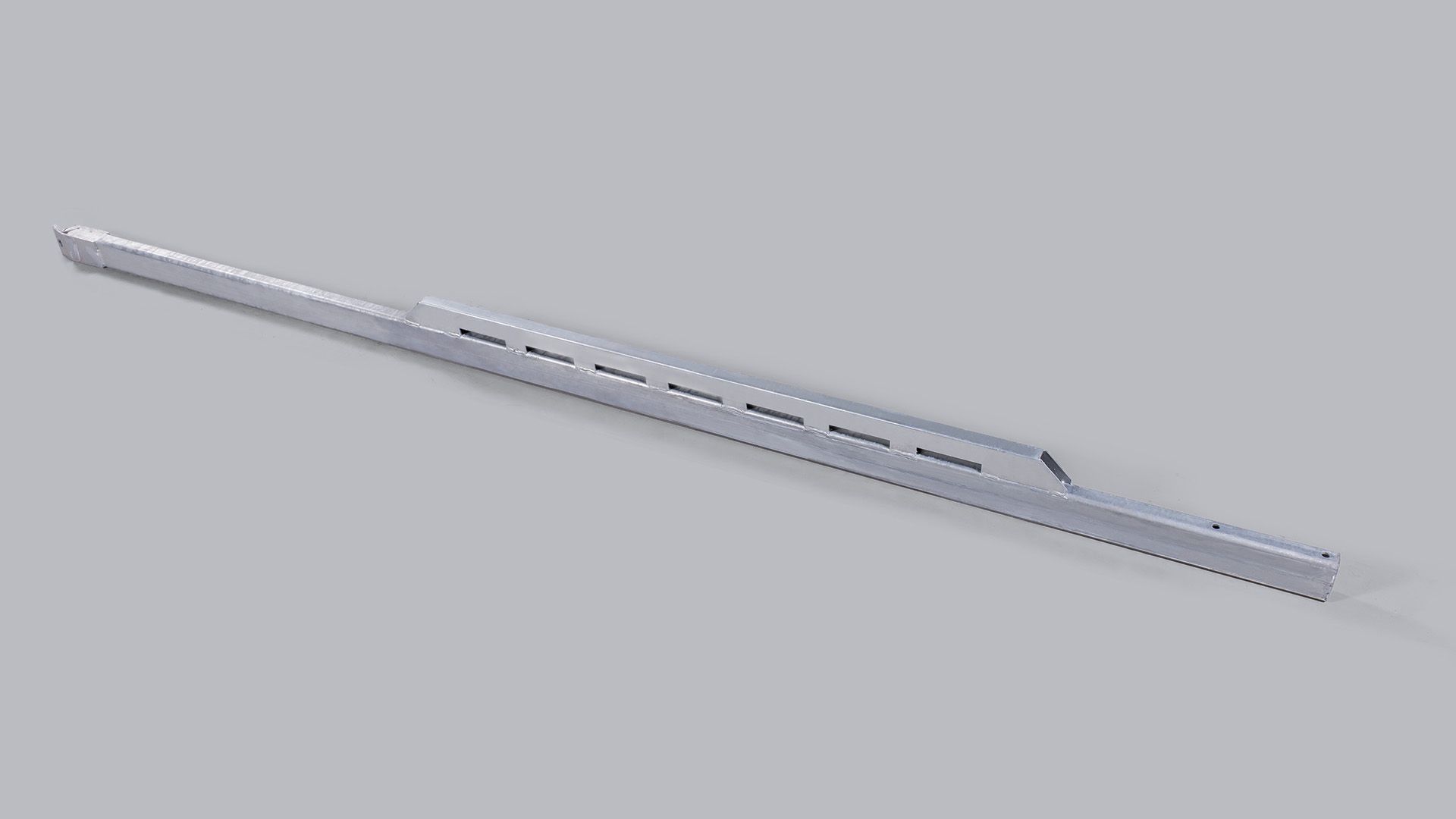

| 6932 | Right side drawbar beam. Used for 1200-1700kg trailers, length 2.50-4-02m and width 1.50-1.82m | 2311mm | 59mm | 50mm | 10+ | |

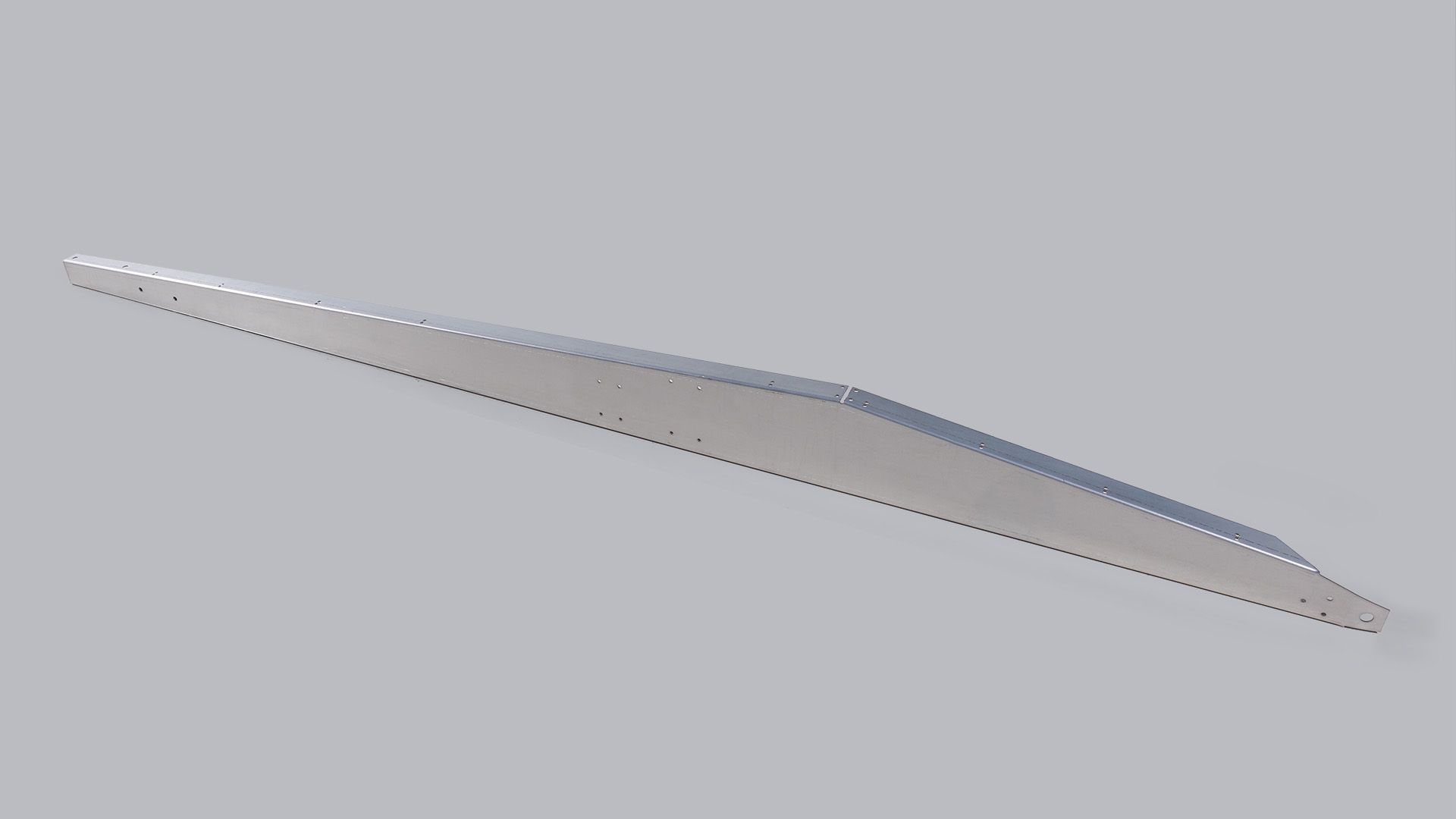

| 8136 | Right side drawbar beam. Used for 1200-2000kg flatbed trailers, length 2.45-3.12m and width 1.50m | 1927mm | 65mm | 51mm | 6 pcs | |

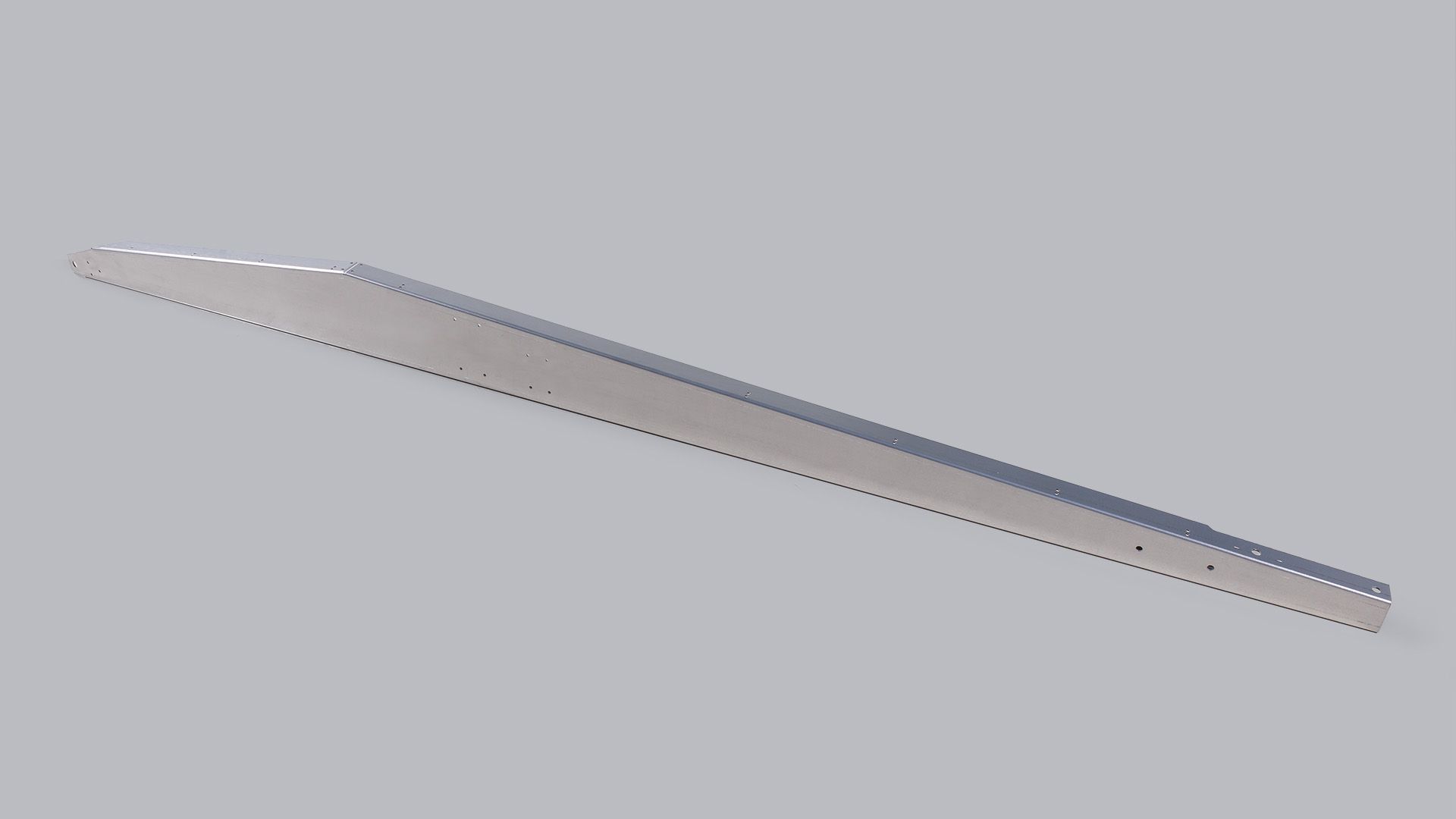

| 8135 | Left side drawbar beam. Used for 1200-2000kg flatbed trailers, length 2.45-3.12m and width 1.50m | 1927mm | 65mm | 51mm | 5 pcs | |
|
| 7167 | Crossbeam for 1350-1500kg PLH trailer drawbar, length 3.00-3.50m and width 1.50m | 743mm | 80mm | 28mm | 2 pcs | |

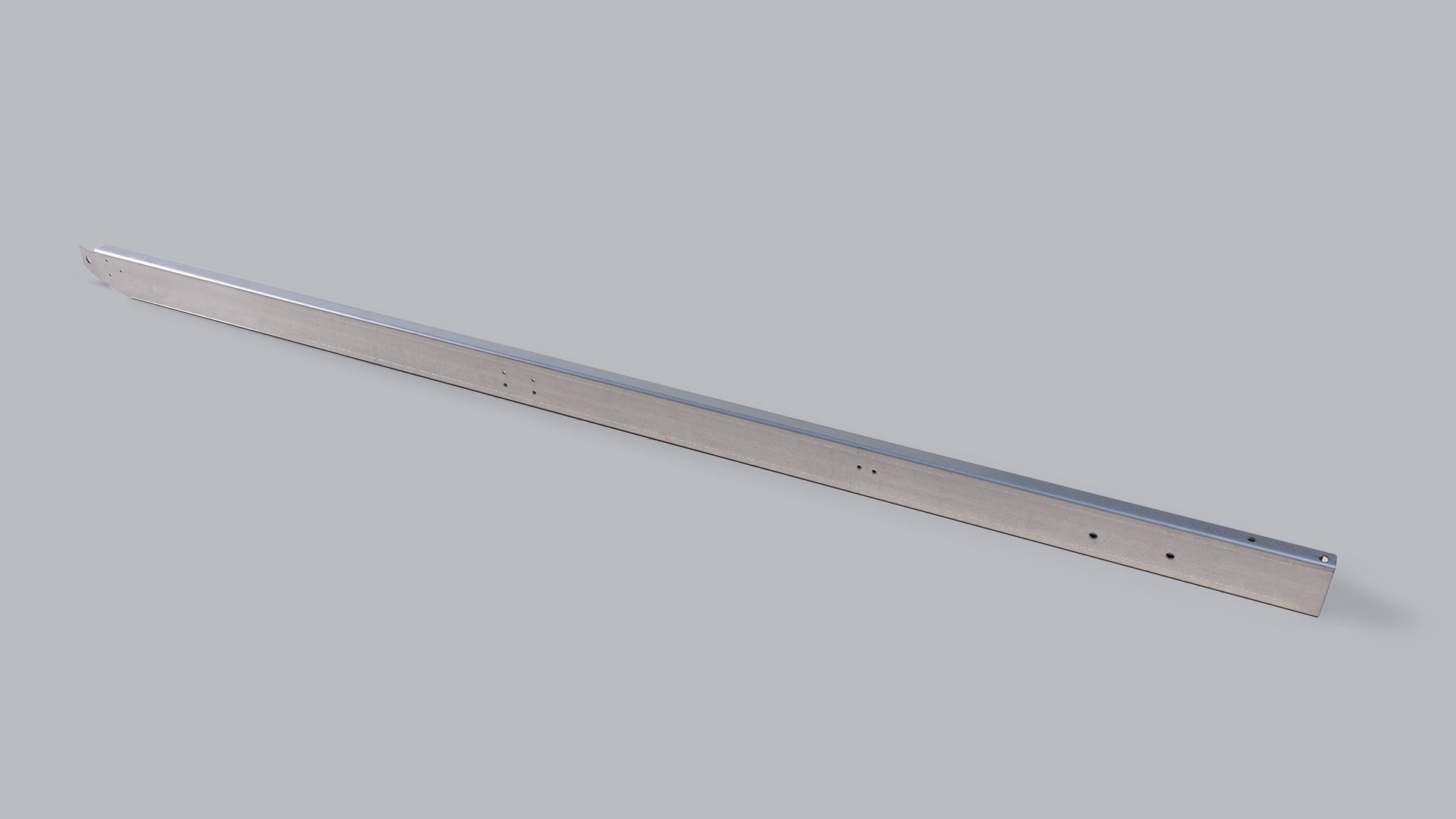

| 7169 | Right side drawbar beam. Used for 1350-1500kg PLH trailers, length 3.00-3.50m and width 1.50m | 2567mm | 65mm | 50mm | 10+ | |
| 7168 | Left side drawbar beam. Used for 1350-1500kg PLH trailers, length 3.00-3.50m and width 1.50m | 2567mm | 65mm | 50mm | 10+ | |
|
| 7265-ZN | Right side drawbar beam. Used for 2700kg trailers, length 4.50-5.50m and width 2.05-2.35m | 3081mm | 80mm | 40mm | 10+ | |
|
| 7394-ZN | Right side drawbar beam. Used for 2000kg welded frame trailer, length 3.25m and width 1.50m (2000M332L150) | 2064mm | 80mm | 35mm | 10+ | |
|
| 7393-ZN | Left side drawbar beam. Used for 2000kg welded frame trailer, length 3.25m and width 1.50m (2000M332L150) | 2064mm | 80mm | 34mm | 10+ | |
|
| 8118-ZN | Right side drawbar beam. Used for 2700kg flatbed trailers, length 4.00m and width 2.05m | 2484mm | 80mm | 34mm | 9 pcs | |
|
| 8117-ZN | Left side drawbar beam. Used for 2700kg flatbed trailers, length 4.00m and width 2.05m | 2484mm | 80mm | 34mm | 9 pcs | |
|
| 7264-ZN | Left side drawbar beam. Used for 2700kg trailers, length 4.50-5.50m and width 2.05-2.35m | 3081mm | 80mm | 40mm | 10+ | |
|
| 7882-ZN | Right side drawbar beam. Used for 3500kg flatbed trailers, length 4.00m and width 2.05m | 2500mm | 90mm | 34mm | 8 pcs | |
|
| 7881-ZN | Left side drawbar beam. Used for 3500kg flatbed trailers, length 4.00m and width 2.05m | 2500mm | 90mm | 34mm | 8 pcs | |
|
| 7270-ZN | Right side drawbar beam. Used for 3500kg trailers, length 4.50-5.50m and width 2.05-2.35m | 3083mm | 90mm | 50mm | 10+ | |
|
| 7269-ZN | Left side drawbar beam. Used for 3500kg trailers, length 4.50-5.50m and width 2.05-2.35m | 3083mm | 90mm | 50mm | 10+ | |
|
| 4261 | Crossbeam for drawbar, compatible with products: 4254 and 4255 | 816mm | 50mm | 28mm | 10+ |
